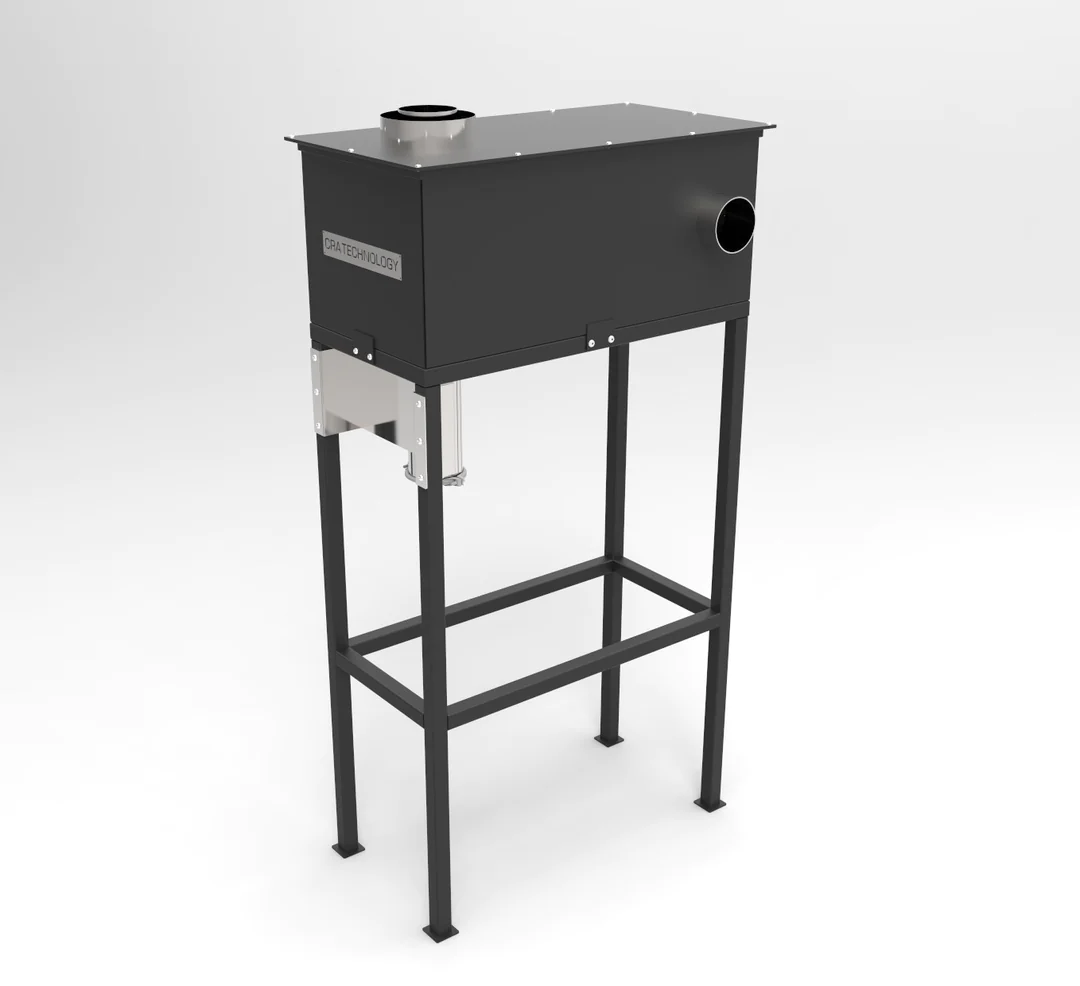

150mm diameter dual inlet CRA afterburner


Available on backorder


Please note this item is supplied ex. QLD with freight costs additional. Contact us for a quote


Appliance Manufacturer CRA Technology (a division of Coffee Roasters Australia)
Appliance Type Afterburner (Thermal Oxidizer)
Batch Capacity Roaster – Maximum 30kg Green Coffee
Build Materials Powdercoated Steel insulated combustion chamber with Powdercoated Steel Frame
Power 240V 50Hz 10amp Single Phase
Heating Method Ecoflam MAXGAS 70 Lo Nox Package Burner


Max Gas Consumption Rating 254.00Mj/hr
Nom Gas Consumption 120-170Mj/hr depending on usage
Gas Supply Pressure NATURAL (1,1kPa)
Combustion Chamber Volume 0.357cm
Ventilation Requirements 254mm DIA Insulated Main Duct – with ceramic fiber insulation. Duct to atmosphere
Operation Control Standard is interlocked to the coffee roaster
Safety 1x Overtemperature Control

1x Process Temperature Control

1x Air Pressure Switch

1x Low Gas Pressure Switch

1x Siemens Burner Safety Controller

1x Double Block AGA approved valve train

Roaster Exhaust Outlets Cyclone 150mm DIA – ID

Cooler 150mm DIA – ID

 Emission Control Efficiency Ringlemann No 1

Additional information

fuel type

electric, lpg
