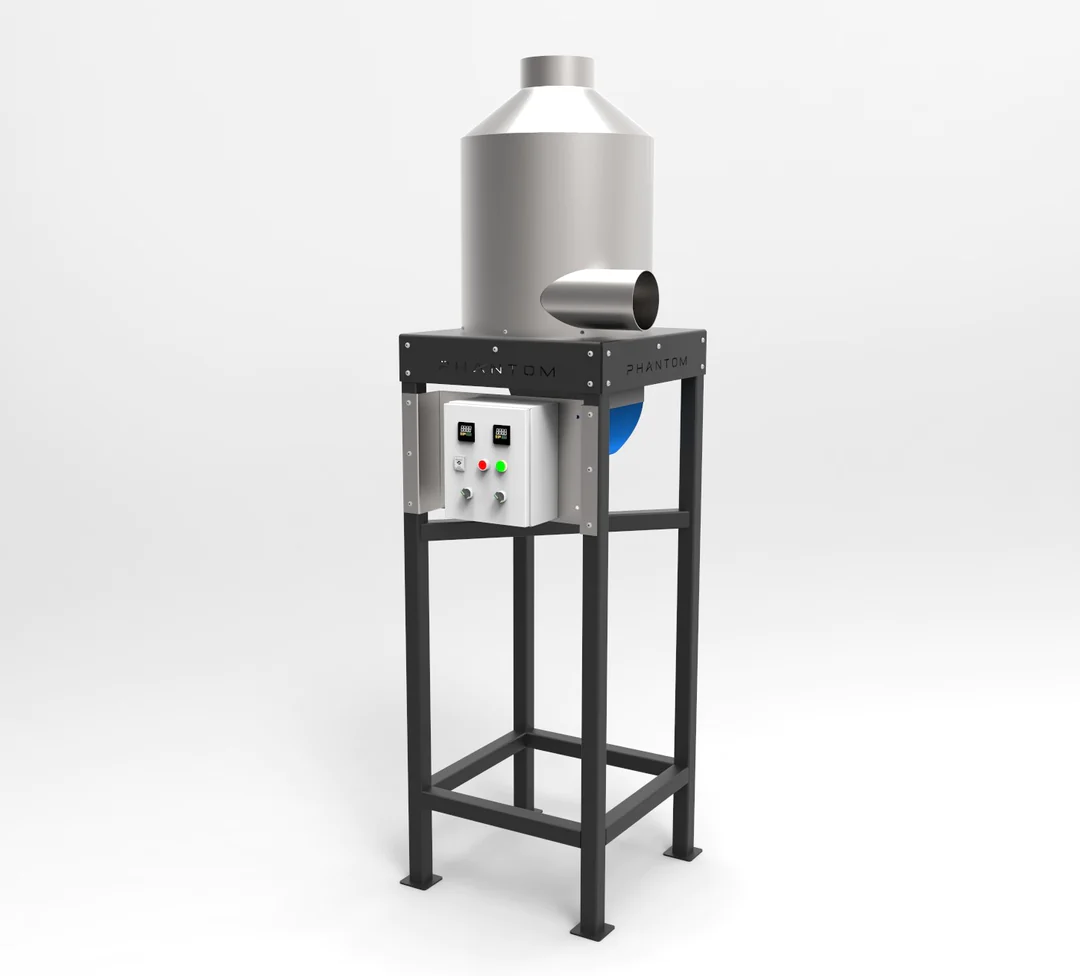

150mm diameter single inlet CRA afterburner


Available on backorder


Please note this item is supplied ex. QLD with freight costs additional. Contact us for a quote


Appliance Manufacturer CRA Technology

(a division of Coffee Roasters Australia)

Appliance Type Afterburner (Thermal Oxidizer)
Batch Capacity Roaster – Maximum 15-30kg Green Coffee
Build Materials 304 Stainless Steel insulated combustion chamber

Powdercoated Mild Steel Frame

Power 240V 50Hz 10amp Single Phase
Heating Method Ecoflam MAXGAS 70 Lo Nox Package Burner


Max Gas Consumption Rating 248Mj/hr
Average Gas Consumption 140Mj/hr (depending on use)
Gas Supply Pressure LPG (2.75kPa), NATURAL (1,1kPa)
Ventilation Requirements 250mm DIA Insulated Main Duct – with ceramic fiber insulation. Duct to atmosphere with no restrictive cowl
Operation Control Standard is interlocked to the coffee roaster
Safety 1x Overtemperature Control (Manual Reset)

1x Process Temperature Control with Overtemp (Manual Reset)

1x Air Pressure Switch

1x Low Gas Pressure Switch

1x Siemens Burner Safety Controller

1x Double Block AGA approved valve train

Roaster Exhaust Outlets Cyclone 150mm DIA – smaller roaster outlets to use reducers
 Emission Control Efficiency Ringlemann No 1

Additional information

fuel type

electric, lpg
