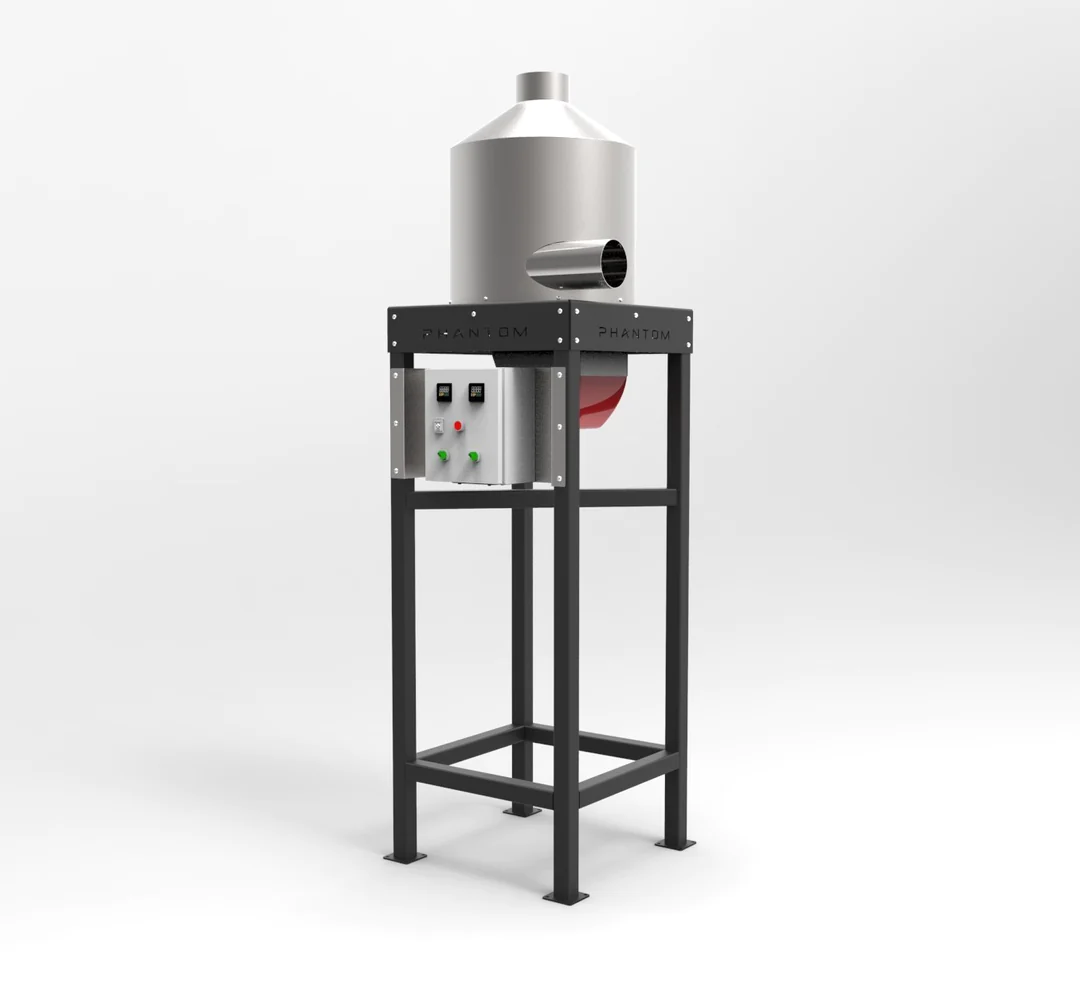

80-125mm diameter single inlet CRA afterburner


Available on backorder


Please note this item is supplied ex. QLD with freight costs additional. Contact us for a quote


Appliance Manufacturer CRA Technology (a division of Coffee Roasters Australia)
Appliance Type Afterburner (Thermal Oxidizer)
Batch Capacity Roaster – Maximum 5-15kg Green Coffee
Build Materials 304 Stainless Steel insulated combustion chamber

Powdercoated Mild Steel Frame

Power 240V 50Hz 10amp Single Phase
Heating Method Ecoflam Lo Nox Package Burner


Max Gas Consumption Rating 254.00Mj/hr
Nominal Gas Consumption 80-100Mj/hr
Gas Supply Pressure LPG (2.75kPa), NATURAL (1,1kPa)
Ventilation Requirements 152mm DIA Insulated Main Duct – with ceramic fiber insulation. Duct to atmosphere
Operation Control Standard is interlocked to the coffee roaster
Safety 1x Overtemperature Control

1x Process Temperature Control

1x Air Pressure Switch

1x Low Gas Pressure Switch

1x Siemens Burner Safety Controller

1x Double Block AGA Approved Valve Train

Roaster Exhaust Outlets Cyclone 125mm DIA – OD (or custom size can be manufactured)
Emission Control Efficiency Ringlemann No 1

Additional information

fuel type

electric, lpg
