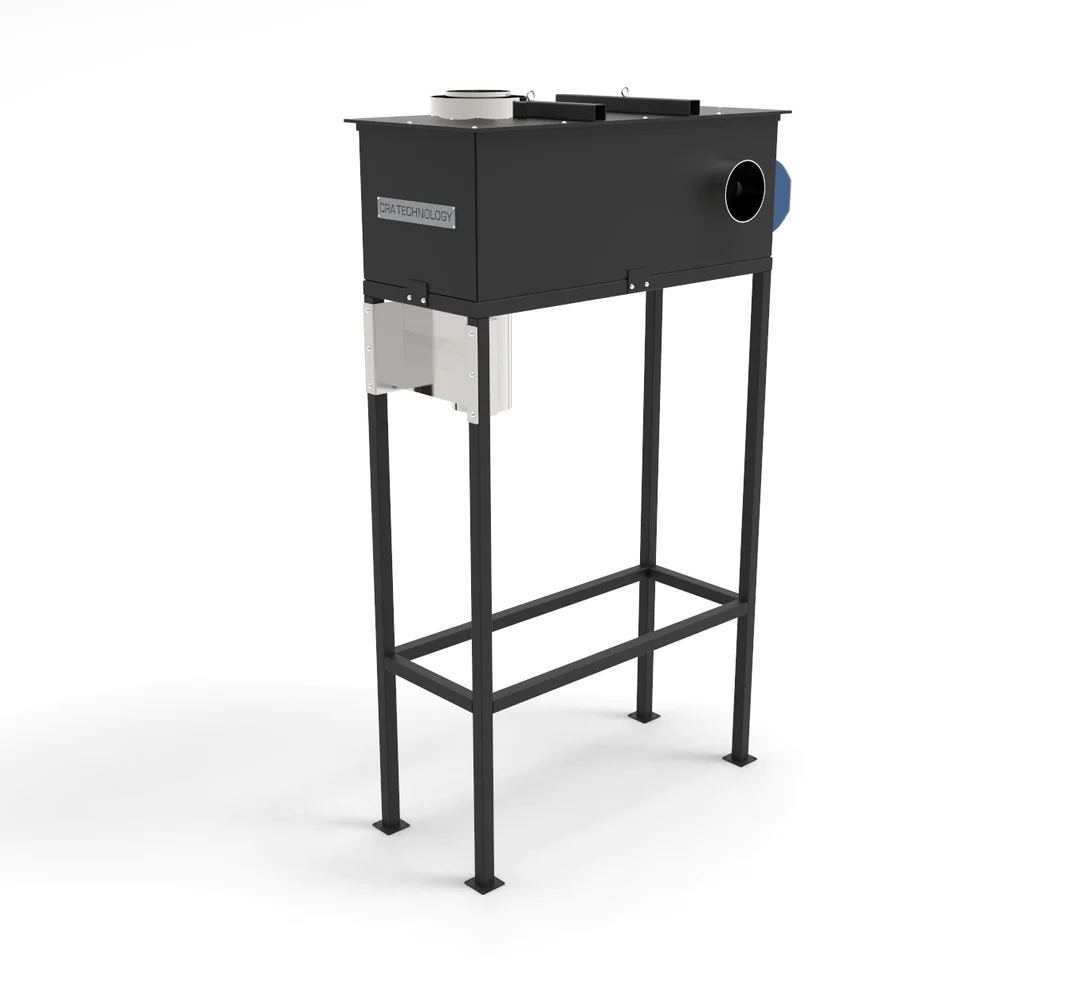

200mm diameter dual inlet CRA afterburner


Available on backorder


Please note this item is supplied ex. QLD with freight costs additional. Contact us for a freight quote


Appliance Manufacturer CRA Technology (a division of Coffee Roasters Australia)
Appliance Type Afterburner (Thermal Oxidizer)
Batch Capacity Roaster – Maximum 60kg Green Coffee
Build Materials Hi Temp Powdercoated Steel insulated combustion chamber with Powdercoated Steel Frame
Power 240V 50Hz 10amp Single Phase
Heating Method Ecoflam MAXGAS 105 Lo Nox Package Burner


Max Gas Consumption Rating 378.00Mj/hr
Gas Supply Pressure LPG (2.75kPa), NATURAL (1,1kPa)
Combustion Chamber Volume 0.394cm
Ventilation Requirements 305mm DIA Insulated Main Duct – with ceramic fiber insulation. Duct to atmosphere
Operation Control Standard is interlocked to the coffee roaster
Safety 2x Overtemperature Control

1x Process Temperature Control

1x Air Pressure Switch

1x Low Gas Pressure Switch

1x Siemens Burner Safety Controller

1x Double Block AGA approved valve train

Roaster Exhaust Outlets Cyclone 200mm DIA – OD

Cooler 200mm DIA – OD

 Emission Control Efficiency Ringlemann No 1

Additional information

fuel type

electric, lpg
